The Venus MicroLED Display elevates your brand to the highest level by delivering breathtaking visuals

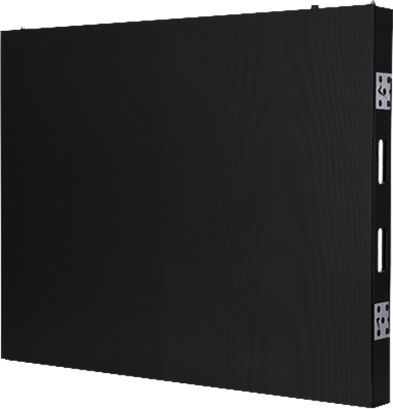

The Mars LED System
The Mars LED System
The Mars LED System is specifically designed for the unique requirements of film and broadcast. It is a highly sophisticated LED solution that delivers incomparable color performance and color restoration.
The Mars LED System
The Mars LED System is specifically designed for the unique requirements of film and broadcast. It is a highly sophisticated LED solution that delivers incomparable color performance and color restoration.
State-of-the-art LED solution for film and broadcast
The Mars LED System is specifically designed for the unique requirements of film and broadcast. It is a highly sophisticated LED solution that delivers incomparable color performance and color restoration. Its wide color gamut, high refresh rate, and high gray scale make it the perfect choice for high-end applications such as XR, VR, and film. In addition, the flexibility in design allows for endless creative possibilities to create the perfect environment for your content.
In film and television environments adaptability is key, and the Mars LED system provides unrivaled versatility. It can be used for a wide variety of applications such as news studios, OB vans, virtual sets, post-production, and more. Reliability is also critical, and the Mars LED system is built to withstand the rigors of 24/7 operation.
The Mars LED system offers a complete solution for all your film and broadcast needs. It provides the perfect balance of form and function and is available in a variety of configurations to meet the specific requirements of your project.
Key Features
The Mars LED System offers several unique features that make it the perfect choice for film and broadcast settings:
Superior Black Level
The Mars LED System provides superior black levels and contrast ratio, making it the perfect choice for applications that require true-to-life visuals. Its perfect uniformity creates a flawless canvas for perfect black levels, enhanced depth, and immaculate detail.
Cinematic Color and Image
The Mars LED System delivers immaculate true-to-life colors with strong restoration ability, making it ideal for applications that require the utmost in visual fidelity – as if you were there in real life. Narrower wavelengths produce RGB colors which are more accurate and natural-looking.
16 Bits Processing
Offering 16-bit processing, the Mars LED System provides exact color mapping and is the perfect choice for applications that require the highest level of color accuracy and detail. Deeper bit depth at low greyscale also delivers extraordinary contrast ratio and smooth, natural tonal gradients.
No Scan Lines on Camera
With a high refresh rate of 7680 Hz, the Mars LED System, avoids visible scan lines on camera, making it the perfect choice for applications that will be captured on film or video.
Morie Reduction
The Mars LED System is a user-friendly solution for camera, it will reduce the morie in front of camera, more clear images on the TV.
Key Features
The Mars LED System offers several unique features that make it the perfect choice for film and broadcast settings:
Superior Black Level
The Mars LED System provides superior black levels and contrast ratio, making it the perfect choice for applications that require true-to-life visuals. Its perfect uniformity creates a flawless canvas for perfect black levels, enhanced depth, and immaculate detail.
Cinematic Color and Image
The Mars LED System delivers immaculate true-to-life colors with strong restoration ability, making it ideal for applications that require the utmost in visual fidelity – as if you were there in real life. Narrower wavelengths produce RGB colors which are more accurate and natural-looking.
16 Bits Processing
Offering 16-bit processing, the Mars LED System provides exact color mapping and is the perfect choice for applications that require the highest level of color accuracy and detail. Deeper bit depth at low greyscale also delivers extraordinary contrast ratio and smooth, natural tonal gradients.
No Scan Lines on Camera
With a high refresh rate of 7680 Hz, the Mars LED System, avoids visible scan lines on camera, making it the perfect choice for applications that will be captured on film or video.
Morie Reduction
The Mars LED System is a user-friendly solution for camera, it will reduce the morie in front of camera, more clear images on the TV.
Specifications
| Pixel Pitch | mm | 1.875mm | 2.5mm |
|---|---|---|---|
| Resolution | dots | 192x96 | 144x72 |
| Pixels per sqm | dots | 284,444 | 160000 |
| Tile size | mm | 360x180x7.5 | 360x180x7.5 |
| Cabinet size | mm | 720x540x59.5 | 720x540x59.5 |
| Cabinet resolution | dots | 384x288 | 288x216 |
| Cabinet weight | kg | 10 | 10 |
| Cabinet material | Aluminum | Aluminum | |
| Brightness | nits | 1500~1800nits | 1500~1800nits |
| Maintenance | Front & Rear Service | ||
| Horizontal viewing angle | degree | >160 | >160 |
| Vertical viewing angle | degree | >160 | >160 |
| View distance | 5.16 | 7.5 | |
| Contrast | 5000 ：1 | 5000 ：1 | |
| Driving mode | Constant Current | ||
| Tile power consumption | W | 35 | 35 |
| AC input voltage | VAC | 100~240 | 100~240 |
| Max Power | W/m² | 600 | 600 |
| Average power | W/m² | 180 | 180 |
| Maximum heat dissipation | BTU/HR/m² | 1200 | 1200 |
| Average heat dissipation | BTU/HR/m² | 360 | 360 |
| Controller | Brompton, Nova, Colorlight | ||
| Gray level | bits | 16bits | 16bits |
| Refresh rate | Hz | 7680 | 7680 |
| Frame frequency | Hz | 144, 120 | 144, 120 |
| Interface type | HDMI, DVI, SDI, DP | ||
| Signal transmission distance | Cat6, <100m, Multi-mode fiber, 500m | ||
| Storage temperature | ℃ | -40℃~60℃ | -40℃~60℃ |
| Operating temperature | ℃ | -10℃~40℃ | -10℃~40℃ |
| Storage humidity | %RH | 10%~90% | 10%~90% |
| Working humidity | %RH | 10%~90% | 10%~90% |
| Protection level/th> | IP30 | IP30 | |
| LED lifespan (75% brightness) | Hrs | 75000 | |
| Certificates | TUV-CE, FCC, CE, ETL | ||
| Pixel Pitch | 1.25mm | 1.5mm | 1.875 | 2.5 |
|---|---|---|---|---|
Applications
Broadcast TV Studio
Control Room
High-end Retail
